01
CAD Geometry Review
Reviewing geometry and navigating the engineering workspace in VectorCraft.
Software development / In progress
Designtech Software
Engineering and production tools, built from practical workflows. Explore VectorCraft CAD, SparkPath CAM and VectorOps ERP, all currently in development.
In development
VectorCraft Engineering

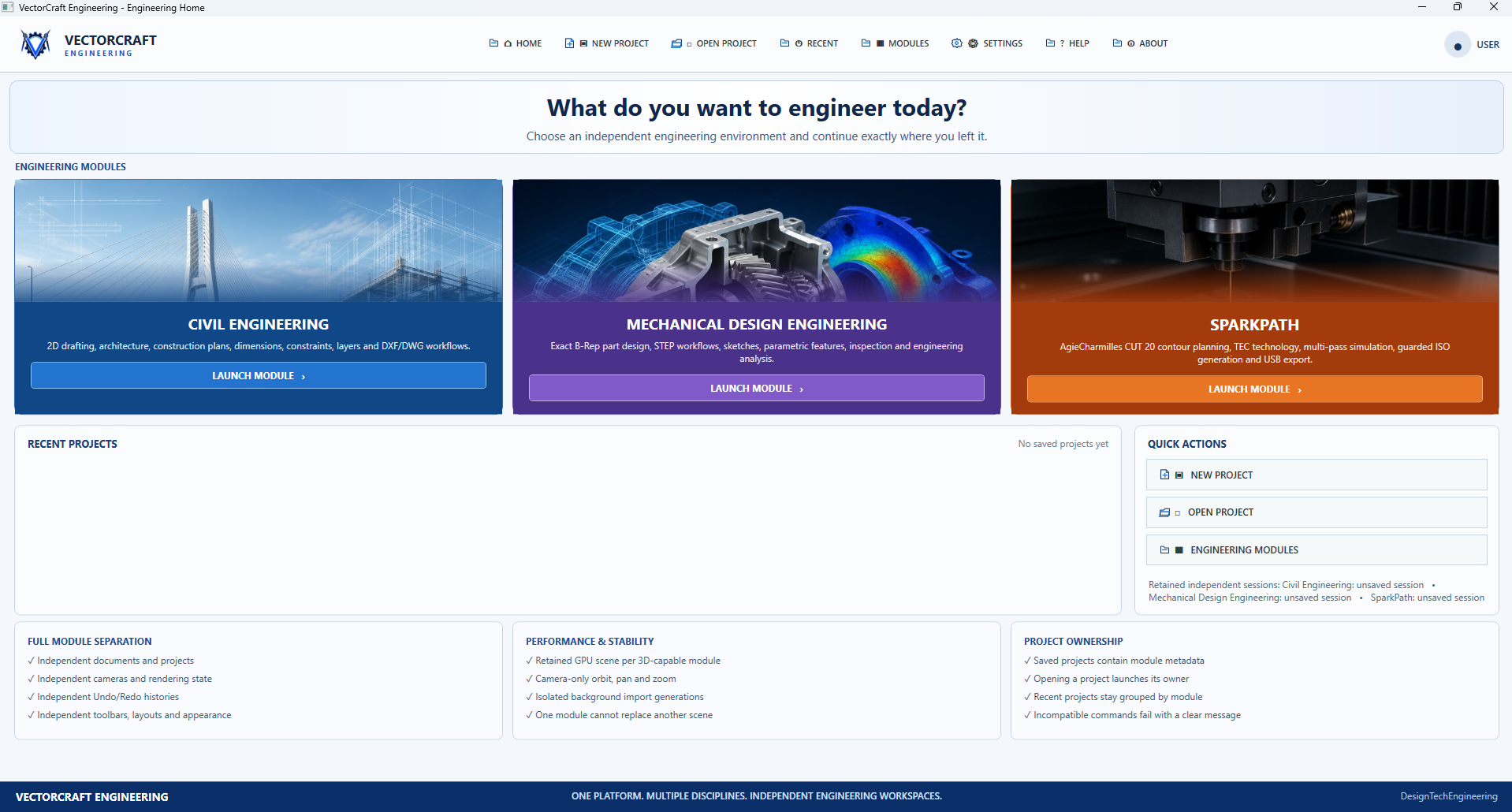

A multi-discipline engineering workspace with independent modules for civil engineering, mechanical design engineering, and SparkPath, a wire EDM programming CAM module. It is designed around separate projects, retained sessions, drawing workflows, constraints, inspection, and exact engineering control.
- Module separation for civil, mechanical, and specialist manufacturing workflows.
- Mechanical workspace with sketches, constraints, model tools, dimensions, views, and analysis.
- SparkPath workflow for wire EDM programming, thread points, cut starts, cut ends, validation, ISO generation, and simulation.
Recorded snippets
VectorCraft in Motion

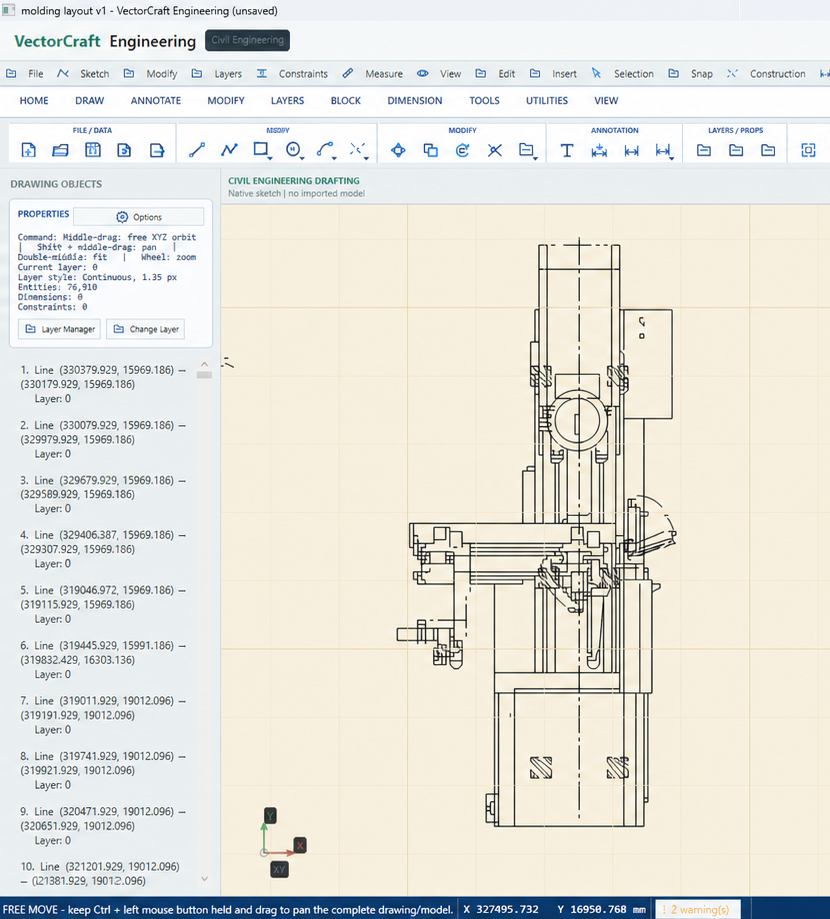

Civil drafting and engineering workflows from the current development build.
02

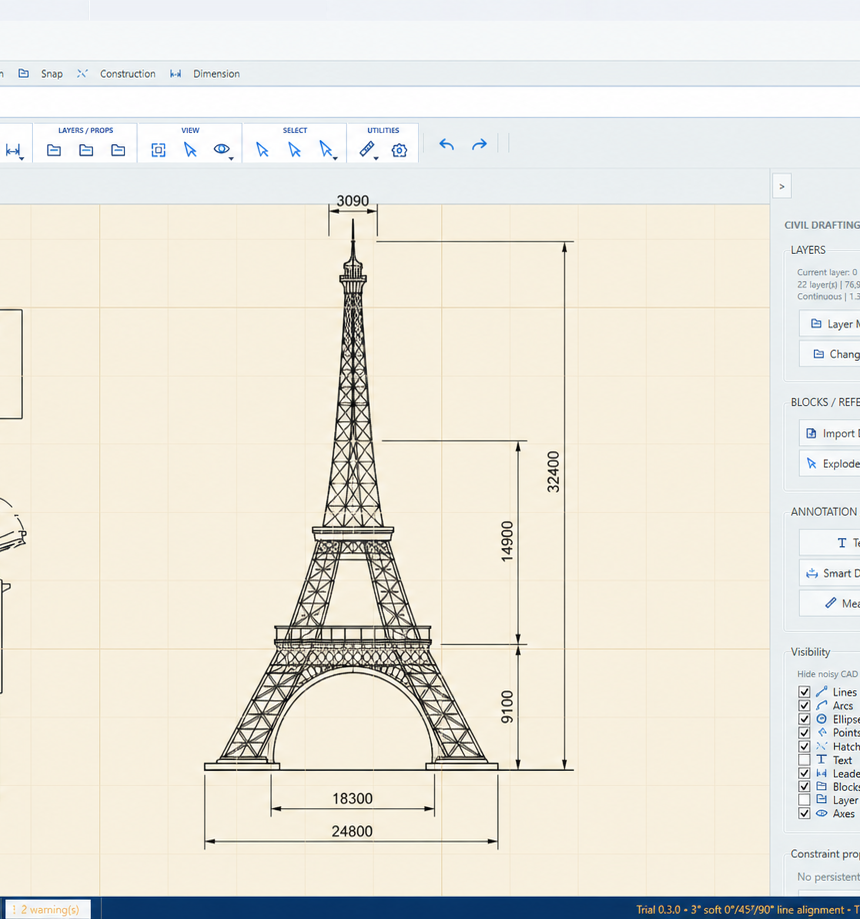

Drawing & Model Navigation
Working with drawing tools and inspecting geometry from different views.
In development / Proposed name
VectorOps

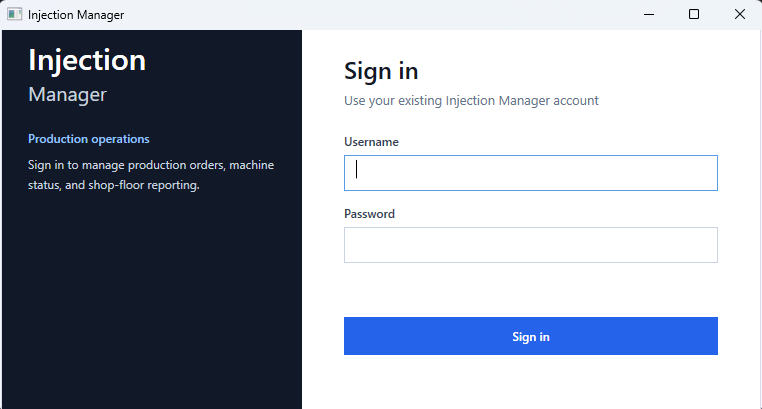

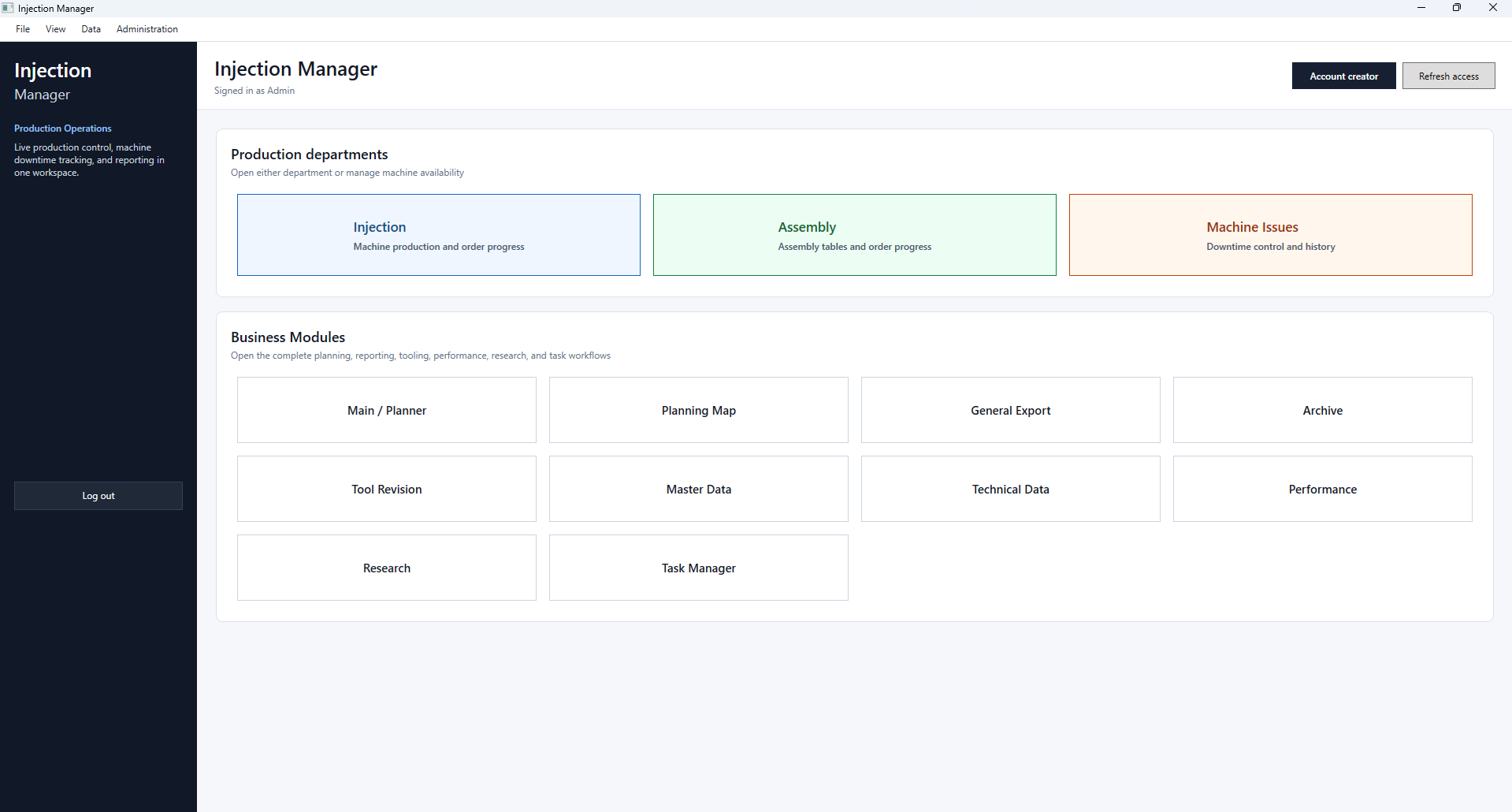

The production platform currently shown in the prototype as Injection Manager. VectorOps is the proposed name for this production operations and ERP platform for injection manufacturing. The software brings machine queues, active orders, live planning, toolshop repairs, active tasks, general export, archive, master data, technical data, and performance reporting into one workspace.

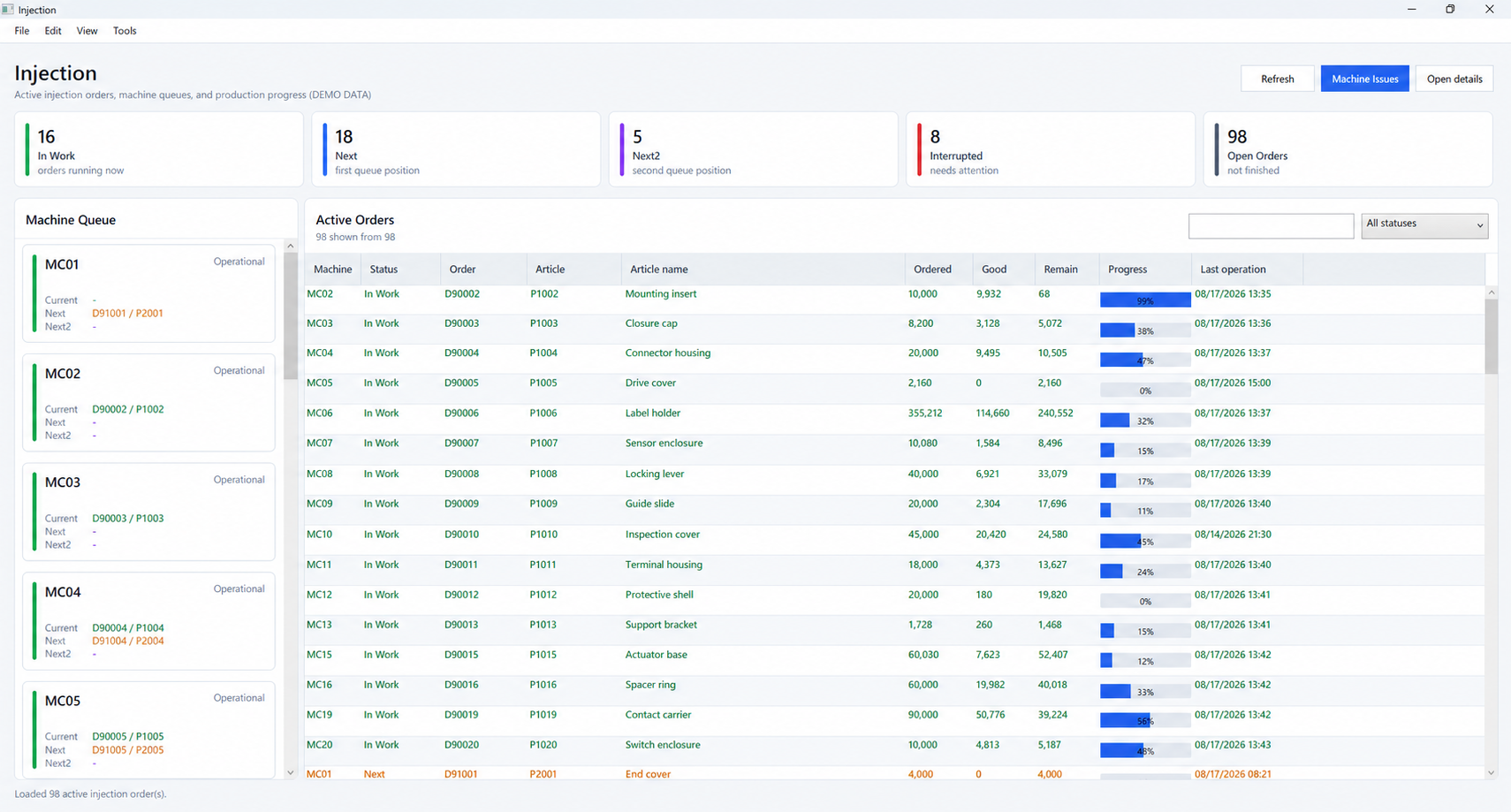

- Active injection orders with machine, article, ordered quantity, good quantity, remaining quantity, and progress.

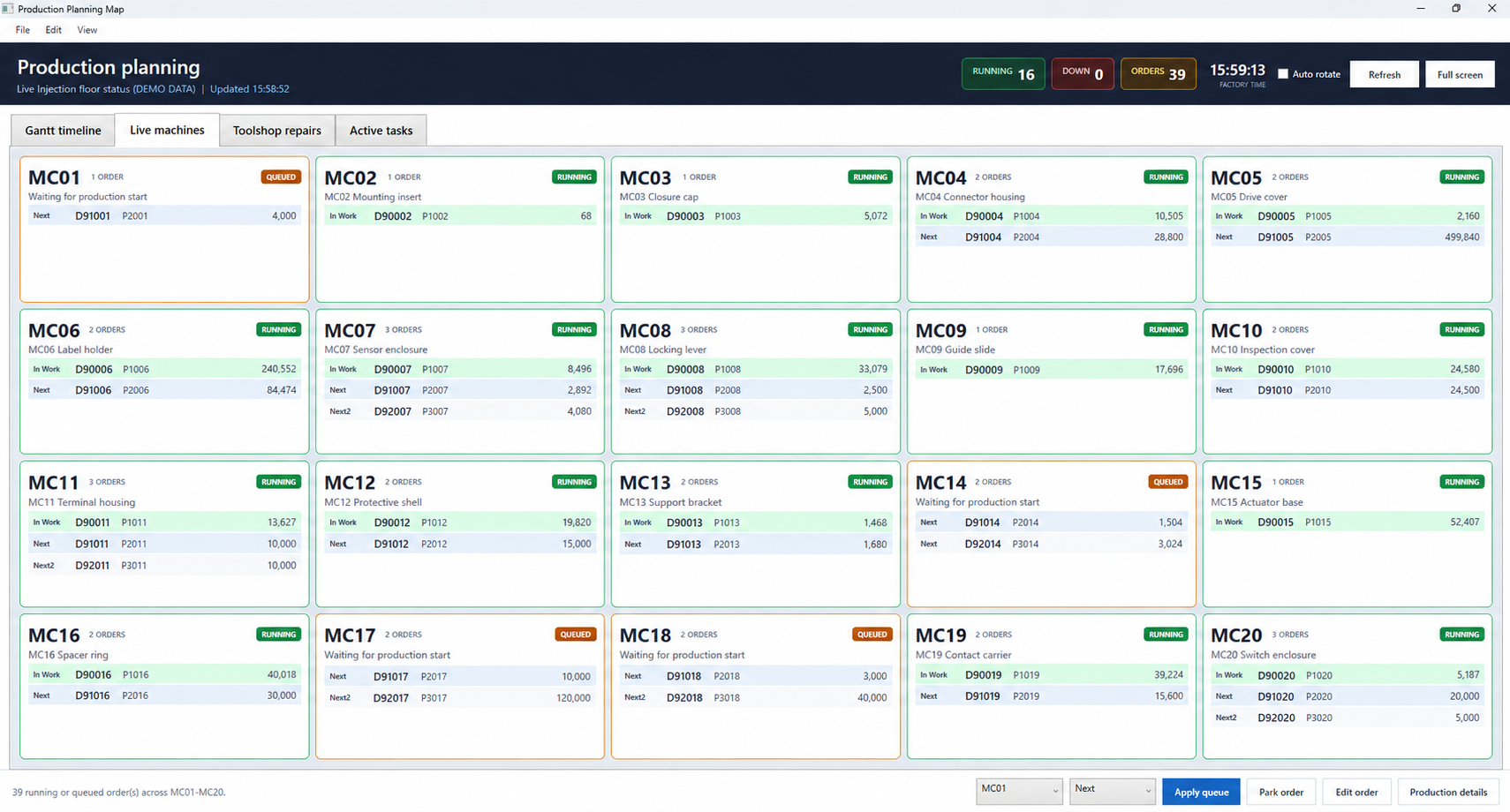

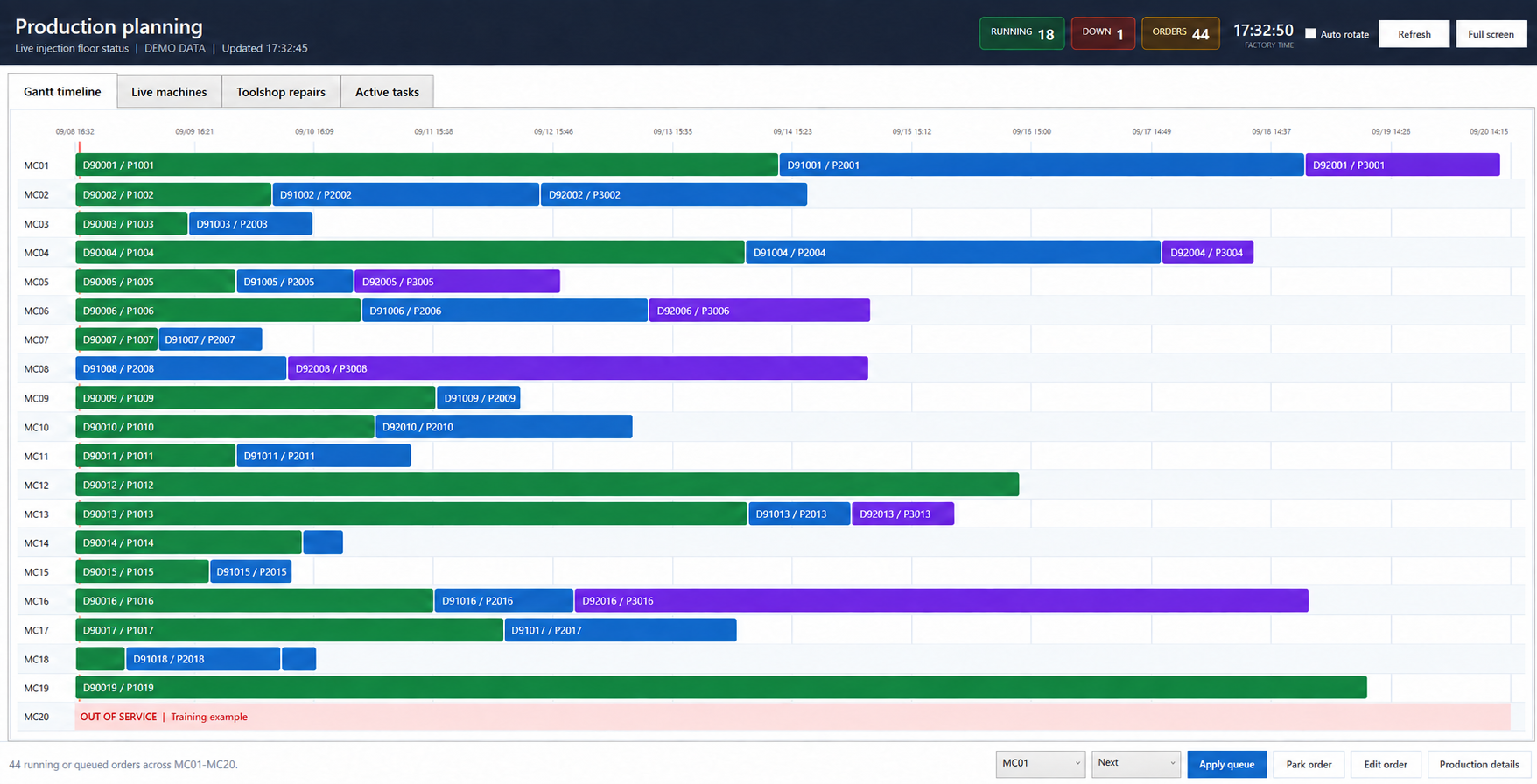

- Live planning map with Gantt timeline, machine status cards, toolshop repairs, and active tasks.

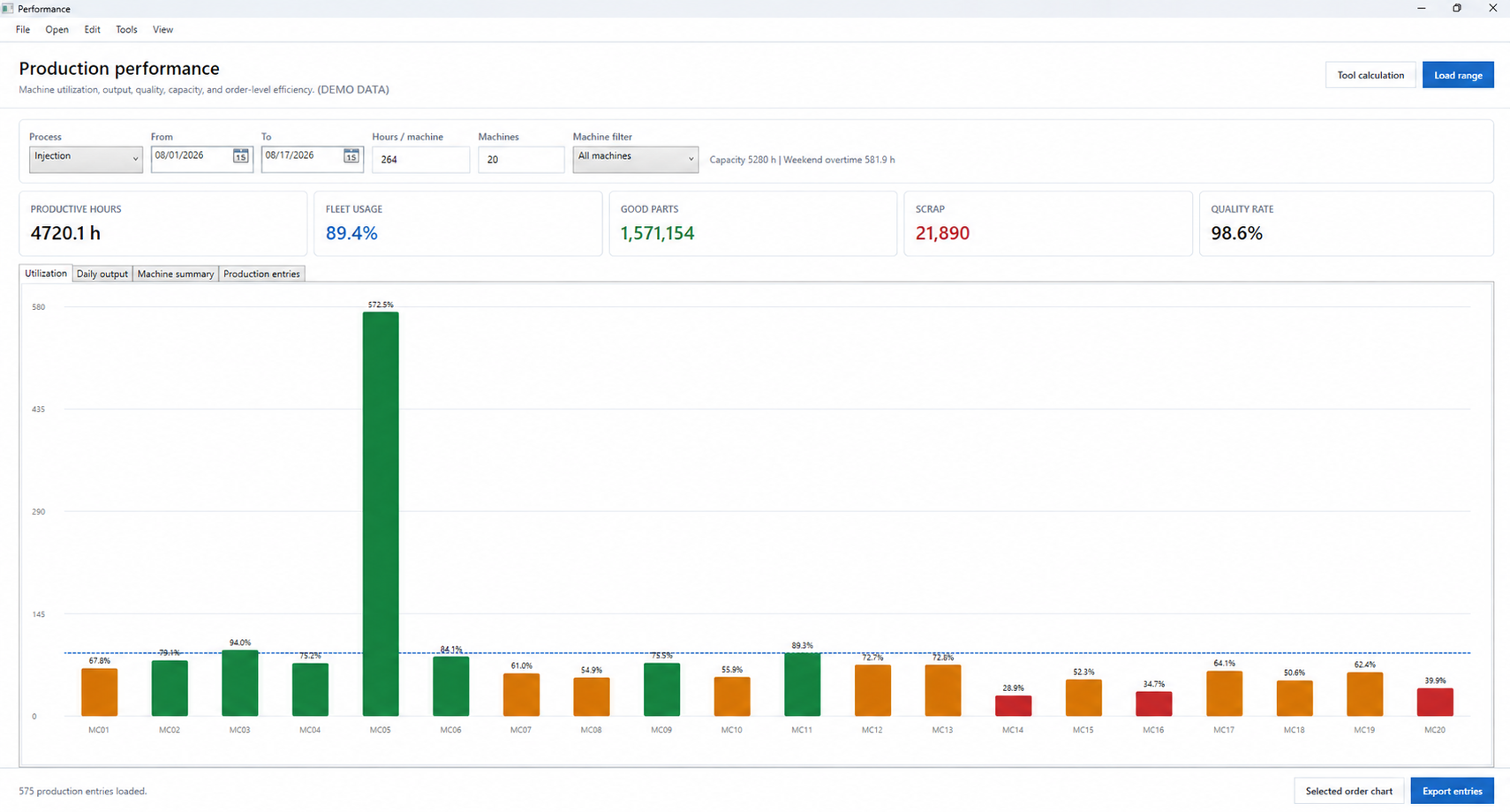

- Performance dashboards for utilization, output, capacity, scrap, quality rate, and order efficiency.
